Kangto

JIGX602 | Play Towers

£25,718.00 exc. VAT
with installation

£20,575.00 exc. VAT
without installation

? Designed for

Ages

Enquire Now

Product Details

Kangto – Jigsaw Play Tower Get the whole gang together and enjoy some play outdoors with our Kangto play tower. With six low-level towers across… Full Details

Request a quote

Your Name(Required)

Email Address(Required)

Postcode

Phone Number

Organisation

Additional Details

How did you hear about us?(Required)

Disclaimer

Please note that, due to the introduction of sustainable materials within our products, photos and images of our products may differ slightly from those represented on our website and marketing material. Please contact us to discuss this further if you have any questions.

Description

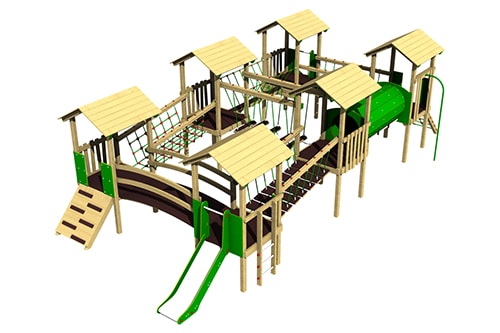

Kangto – Jigsaw Play Tower

Get the whole gang together and enjoy some play outdoors with our Kangto play tower. With six low-level towers across two different platform heights, this play structure is packed with exciting features ideal for younger children.

Key Features

Slide – 0.9m
Rung Ladder – 0.9m
Ramp – 0.9m
Arched Timber Bridge
Inclined Net Crossing
Inclined Clatterbridge
Staggered Walkway
V-Bridge
Crawling Tunnel
Clatterbridge
Slide – 1.2m
Net Climber – 1.2m
Firefighter Pole
6 x Platforms – 0.9m (x2) & 1.2m (x4)

Part of our innovative modular Jigsaw range, either choose one of our ready-made designs or create your own individual play structure by selecting your components piece by piece.

Combine as many, or as few, pieces as you wish and create a truly unique play tower that meets your individual area requirements and budget.

With almost 100 components to choose from, the possibilities are truly endless!

NOTE: Individual Jigsaw products cannot be combined with any other Creative Play, or external, ranges of play equipment.

Delivery & installation included in UK mainland orders exceeding a minimum order value – Please contact us for more information

Technical Details

Free Fall Height (mm)	1350

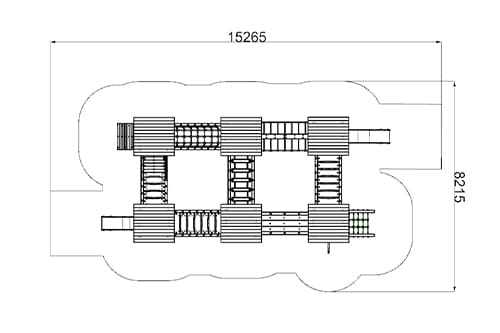

Minimum Space Required (width x length) (m)	15.3 x 8.2
Standards Compliance	BS EN 1176
Spare Part Availability	2 - 4 Weeks
Minimum Required Persons	2

Our Materials

Here at Creative Play, we manufacture our own unique range of playground equipment using a variety of different materials.

We believe that using high quality, durable materials is essential in order to create products that not only meet national safety standards but are built to last.

Timbers

All timbers are UK Pine, sourced within the UK from FSC approved suppliers and pressure treated with a chrome-free and arsenic free preservative. Round Timbers are 125mm and square timbers are 90mm, cut from the heart of the tree to reduce splitting.

Steel Core Ropes

Our ropes are polypropylene covered multi-filament (6 strand) steel reinforced 16mm ropes, secured with hydraulically pressed end connections and tamper-proof net joints. Tested safe load of 9000kg.

High Density Polyethylene (HDPE) (Playtec)

High spec, co-extruded polyethylene ‘Playtec’ panels. Extremely durable, UV stable ensuring it will not fade in sunshine, it is unaffected by moisture and will not delaminate. Provides structural strength and design aesthetic. Available in Blue, Green, Red and Yellow.

Playtec PCR

Coloured HDPE Playtec panels manufactured using a 100% recycled (PCR) core. UV Stable and unaffected by moisture, Playtec-PCR provides structural strength and colourful aesthetics (green, blue, red or yellow) whilst being sustainable

Chains & Fixings

Fastenings are tamper proof or capped with secure plastic tamper proof covers. Galvanised steel fixings are anti-tamper and/or torx type fixings. Designed specifically for strength and outdoor use. All footholds have a slip-resistant surface.

EkoGrip

EKOgrip provides a slip resistance material for platforms, floors and footholds. Made from robust, post-consumer recycled (PCR) material with a 2mm thermoplastic elastomer with button structure, Ekogrip provides a durable, sustainable and anti-slip component to improve safety of our playground equipment.

Hexa-Grip Board

Slip-resistant marine ply platforms and footholds are resin impregnated plywood panels coated with a brown phenolic layer, imprinted with a hexagonal pattern, providing slip resistance.

Metal Components

Steel elements are generally zinc primed and powder coated i.e. chin up bars or similar. Some items are galvanised prior to powder coating. All designed with strength, robustness and outdoor use in mind.
