? Designed for
Product Details
NRG Cheddar Gorge Are you prepared to tackle the challenge of swinging hand-to-hand high above the rocky outcrops of Cheddar Gorge? Adventurers will build upper… Full Details
Request a quote
Disclaimer
Please note that, due to the introduction of sustainable materials within our products, photos and images of our products may differ slightly from those represented on our website and marketing material. Please contact us to discuss this further if you have any questions.
Description

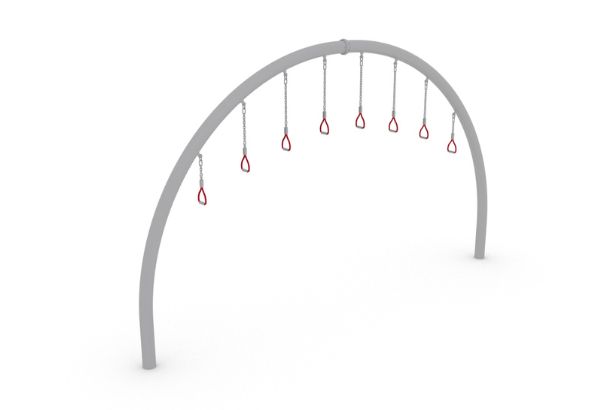

NRG Cheddar Gorge
Are you prepared to tackle the challenge of swinging hand-to-hand high above the rocky outcrops of Cheddar Gorge? Adventurers will build upper body strength as they strive to reach the other side without letting go.
Technical Details
| Free Fall Height (mm) | 1970 |
| Minimum Surfacing Area (if required) (m2) | 30 |
| Minimum Space Required (width x length) (m) | 7.95 x 3.8 |
| Standards Compliance | BS EN 1776 |
| Spare Part Availability | 2-4 Weeks |
| Minimum Required Persons | 2 |
Our Materials
Here at Creative Play, we manufacture our own unique range of playground equipment using a variety of different materials.
We believe that using high quality, durable materials is essential in order to create products that not only meet national safety standards but are built to last.
Timbers
All timbers are UK Pine, sourced within the UK from FSC approved suppliers and pressure treated with a chrome-free and arsenic free preservative. Round Timbers are 125mm and square timbers are 90mm, cut from the heart of the tree to reduce splitting.
Steel Core Ropes
Our ropes are polypropylene covered multi-filament (6 strand) steel reinforced 16mm ropes, secured with hydraulically pressed end connections and tamper-proof net joints. Tested safe load of 9000kg.
High Density Polyethylene (HDPE) (Playtec)
High spec, co-extruded polyethylene ‘Playtec’ panels. Extremely durable, UV stable ensuring it will not fade in sunshine, it is unaffected by moisture and will not delaminate. Provides structural strength and design aesthetic. Available in Blue, Green, Red and Yellow.
Playtec PCR
Coloured HDPE Playtec panels manufactured using a 100% recycled (PCR) core. UV Stable and unaffected by moisture, Playtec-PCR provides structural strength and colourful aesthetics (green, blue, red or yellow) whilst being sustainable
Chains & Fixings
Fastenings are tamper proof or capped with secure plastic tamper proof covers. Galvanised steel fixings are anti-tamper and/or torx type fixings. Designed specifically for strength and outdoor use. All footholds have a slip-resistant surface.
EkoGrip
EKOgrip provides a slip resistance material for platforms, floors and footholds. Made from robust, post-consumer recycled (PCR) material with a 2mm thermoplastic elastomer with button structure, Ekogrip provides a durable, sustainable and anti-slip component to improve safety of our playground equipment.
Hexa-Grip Board
Slip-resistant marine ply platforms and footholds are resin impregnated plywood panels coated with a brown phenolic layer, imprinted with a hexagonal pattern, providing slip resistance.
Metal Components
Steel elements are generally zinc primed and powder coated i.e. chin up bars or similar. Some items are galvanised prior to powder coating. All designed with strength, robustness and outdoor use in mind.
